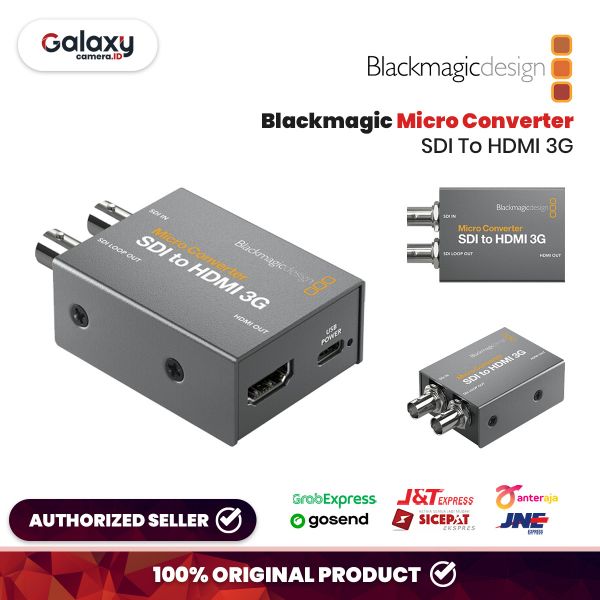

Blackmagic Design Micro Converter SDI To HDMI 3G

Availabilitydalam stok
SKU
BLA-CON-SDITOHDMI-3G-BL-0-RES
Rp1.045.000,00

USB Type-C Port
1 x SD / HD / 3G-SDI Input
1 x SD / HD / 3G-SDI Loop Out
1 x HDMI Output
Supports up to 1080p60 Resolution I/O
USB Power/SDI Re-Clocking/Timecode

Blackmagic Design Micro Converter SDI To HDMI 3G, Super ringkas dan kokoh. Dapat digunakan untuk menghubungkan kamera SDI ke monitor atau komponen HDMI.

Konverter ringkas ini memiliki satu input 3G-SD / HD / SDI, satu loop out 3G-SD / HD / SDI dan satu output HDMI yang secara otomatis mendeteksi dan mencocokkan input SDI Anda dengan output HDMI dan kompatibel dengan resolusi input / output hingga 1080p60.

Fitur :
- USB Type-C Port
- 1 x SD / HD / 3G-SDI Input
- 1 x SD / HD / 3G-SDI Loop Out
- 1 x HDMI Output
- Supports up to 1080p60 Resolution I/O
- USB Power/SDI Re-Clocking/Timecode

Video Input Connectors   1 x BNC (3G-SDI / HD-SDI / SD-SDI)
Input Video Format  SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fpsDCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps
Audio Input Connectors  None
Embedded Audio Input  SDI
Video Output Connectors  1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Loop Output) 1 x HDMI
Output Video Format  SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps
1080p:,23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps1080PsF: 25/29.97/30 fps1080i: 50/59.94/60 fps720p: 50/59.94/60 fps
NTSC: 29.97 fpsPAL (768 x 576): 25 fpsHDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps1080i: 50/59.94/60 fps720p: 50/59.94/60 fps
NTSC: 29.97 fpsPAL (768 x 576): 25 fps
Audio Output Connectors None
Embedded Audio Output HDMI SDI
Video Standard Compliance  SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support   Version 2.2
Version 2.2  1 x USB Type-C Input
Expansion Slots  None
Tally Light Yes
OS Compatibility macOS 10.14.15 or Later Windows 10
Power Connector 1 x USB Type-C (4.4 to 5.2 VDC) Input
Power Consumption 2.5 W
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
Dimensions 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight 5.29 oz / 150 g

1pcs - Blackmagic Design Micro Converter SDI To HDMI 3G
