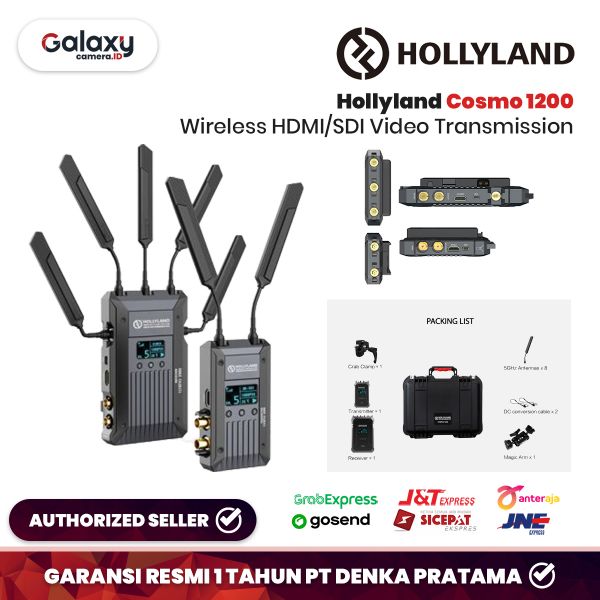

Hollyland Cosmo 1200 Wireless HDMI/SDI Video Transmission System

Availabilitydalam stok
SKU
HOL-TRA-COSMO1200-0-BL-0-RES
Harga Spesial Rp34.500.000,00 Regular Price Rp36.000.000,00

Jangkauan 1200ft
SDI + HDMI
Trigger
Timecode
Smart Cooling Fan
OLED Screen
No Latency No Compression
USB Firmware Upgrade

Hollyland Cosmo 1200 Wireless HDMI/SDI Video Transmission System

Hollyland Cosmo 1200 adalah Sistem Transmisi Nirkabel HDMI / SDI yag memiliki jangkauan 1200ft sampai 1500ft.

Memiliki desain yang portable dengan ringan. Berat transmitter hanya 260g dan receiver hanya 500gr.

Dilengkapi juga dengan Layar OLED yang akan menampilkan Saluran, Kekuatan Sinyal, Format Video, Status Kipas dan Suhu.

Mendukung Kode Waktu LTC & VITC. Akurasi yang lebih tinggi tanpa skipping dan delay frame. Memfasilitasi direktur, teknisi rekaman, dan staf lain untuk mengatur rekaman.

Perekaman Sinkron, mendukung perekaman gerakan lambat,
kompatibel dengan 25/50/100 FPS. Sinkronisasi perekaman kamera secara otomatis.

Perlindungan anti-tabrakan dirancang untuk semua antarmuka,
jika perangkat jatuh secara tidak sengaja selama pengambilan gambar, ini dapat mencegah kerusakan antarmuka secara efektif.

Fitur :
- Jangkauan 1200ft
- SDI + HDMI
- Trigger
- Timecode
- Smart Cooling Fan
- OLED Screen
- No Latency No Compression
- USB Firmware Upgrade

Transmitter
Interface SDI Input (female) SDI Loop Out (BNC female)
  HDMI Input (Type A female) 2 Antenna port (RP-SMA male)
  DC Input (2pin LEMO female) Mini USB port 3.5mm Analog Invoice input port
Supply Voltage Range 7-36V DC
Power Consumption <6W
Weight 260g
Dimensions (LxWxH) 126 x 5 x 70mm, not include antennas and battery plate
Input Video Format HDMI 480p60, 576p50, 720p50/59, 94/60, 1080i50/59.94/60
  1080p23.98/24/25/29.9/30/50/59.94/60
  HDMI Type A
  SDI:3G, HD, and SD-SDI (auto-selected)
  SMPTE-259/274/292/296/372/424/425, 1x BNC, 1x BNC Loopout
Output Video Format N/A
Input Audio SDI/HDMI embedded 2 channel 24 bit/48KHz
Output Audio SDI/HDMI embedded 2 channel 24 bit/48KHz
Frequency Band 5.1-5.9GHz, configurable with China, North America, Europe etc.
Modulation Mode OFDM-16QAM
Transmission Power Maximum 17dBm
Receiver Sensitivity N/A
Occupied Bandwidth 20/40MHz
Receiver
Interface SDI1 Output, SDI2 output, HDMI output (Type A female)
  DC Input, 5Antenna port (RP-SMA male) Mini USB
Supply Voltage Range 7-36V DC
Power Consumption <7W
Weight 590g
Dimensions (LxWxH) 174 x 106 x 25mm, not including antennas and battery plate
Input Video Format N/A
Output Video Format HDMI: 480p60, 576p50, 720p50/59.94/60
  1080i50/59.94/60
  1080p23.98/24/25/29.9/30/50/59.94/60
  HDMI Type A
  SDI: 3G, HD and SD-SDI (auto selected)
  SMPTE-259/274/292/296/372/424/425
  2x BNC Output
Input Audio N/A
Output Audio SDI embedded 2 channel 24 bit/48KHz
Frequency Band 5.1-5.9GHz, configurable with China, North America, Europe etc.
Modulation Mode OFDM-16QAM
Transmission Power N/A
Receiver Sensitivity -75dBm
Occupied Bandwidth 20/40MHz

1pcs - Transmitter
1pcs - Receiver
1pcs - Hard Case
8pcs - 5GHz Antennas
1pcs - Magic Arm
1pcs - Crab Clamp
2pcs - DC Conversion Cables
2pcs - Mushroom Antennas
1pcs - Buku Panduan
1pcs - Kartu Garansi
